Non-Autoclaved Aerated Concrete Block Production
Equipment 400–800 m³/day — Without Autoclaves
Turnkey NAAC block line – cost-efficient, energy-saving, scalable for industrial production worldwide.
Reliable Solution for Industrial-Scale NAAC Block Production

The NAAC block production equipment with a capacity of 400–800 m³/day is designed for efficient, stable, and cost-effective manufacturing of high-quality lightweight construction blocks based on non-autoclaved aerated concrete technology.

This advanced line integrates seamlessly with existing production systems, minimizes downtime, and ensures high output. It is ideally suited for manufacturers looking to scale up operations, expand their product range, or modernize outdated equipment.

Over the years, several manufacturers have attempted to replicate this production line design. However, many of those imitations introduced critical process simplifications or structural flaws that negatively impact equipment reliability and product quality.

INDESOL is the original developer of this system and continuously improves the design based on real-world production demands, component durability, and final block quality.

Thanks to high-performance automation and precise control over mixing, molding, and cutting, the line consistently delivers high-quality blocks with minimal waste.

The integrated cutting complex allows for the production of blocks in various sizes with outstanding dimensional accuracy. It is user-friendly, easy to reconfigure for different formats, and performs reliably under continuous high-volume operation. The system ensures precise block alignment on the construction site, eliminating the need for trimming or adjustments during installation This makes it an ideal choice for manufacturers with variable product lines and strict requirements for accuracy and quality.

The equipment is built for energy efficiency and low maintenance needs, ensuring reliable long-term operation and reduced total cost of ownership. Its rugged construction and high-quality components make this line a dependable solution for industrial-scale NAAC block production.

Plant Overview
Parameter Value
Production capacity 400–800 m³/day
Automation level Up to 90%
Required installation area 2000 – 5000 m²
Installation time 30 – 45 days
Number of operators 10 – 15 persons
Installed power 200 – 600 kW
Voltage 380 V / 50 Hz
400 V / 60 Hz
Block size 600 х 300 х 75/100/125/150/175/200, etc. (Adjustable)
Parameter Value
Water consumption
D400 / D500 / D600
200/200/230 L/m³
Cement consumption
D400 / D500 / D600
250/270/280  kg/m³
Sand consumption
D400 / D500 / D600
120/200/290  kg/m³
Adaptability to raw material Works in hot/cold/humid regions
Minimum indoor temperature Not below +5 °C (41 °F)
Compressive strength 1.1 – 13.5 MPa (11.2 – 137.7 kgf/cm²)
Block density 300 – 1200 kg/m³
Casting volume per mold 3 m³

Please keep in mind that key parameters — such as:

Required number of personnel, size of the production facility and adjacent space, power supply capacity, and other factors — are determined based on the selected technology and project scope.

These values are not fixed and are defined individually, considering layout requirements, automation level, and available resources.

Our engineering team will develop a customized technical solution based on the target production volumes and project objectives.

The configuration is shaped by the specifics of the enterprise, defined goals, and long-term priorities, ensuring an optimal balance of performance, flexibility, and efficiency, while also allowing easy adaptation to changing market demands.

Key Features
  • Smart control system (optional) — remote monitoring, diagnostics, and alerts.

  • Fully customizable — block dimensions, plant layout, and capacity tailored to client needs.
  • Fast commissioning — sfull installation completed within 30–45 days on prepared foundation.
  • High-precision and high-speed cutting — band saw machine ensures fast operation with cutting accuracy of ≤1 mm; no trimming required.
  • No autoclave required — energy-saving setup with simplified installation.

  • Stable performance in all climates — suitable for hot, cold, and humid environments.
  • Proven implementation experience — successful installations in various countries and environments.
  • Often copied — never matched — many have tried to replicate our design, but only INDESOL offers the original without structural flaws.
  • Proprietary technology — original NAAC block line developed and refined by the INDESOL engineering team.
  • Low operating costs — reduced energy consumption and minimal labor requirements.
  • Ready for global deployment — adapted for technical and climate conditions in Africa, GCC, Latin America, and Asia.
  • Extended warranty and technical support — we support your project from setup to full-scale production; our team is always ready to help, including post-warranty service and modernization.
  • Customized technology for regional raw materials — our technologists develop optimized mix designs based on locally available materials, ensuring high product quality and economic efficiency. This is a key advantage of INDESOL compared to typical equipment suppliers.

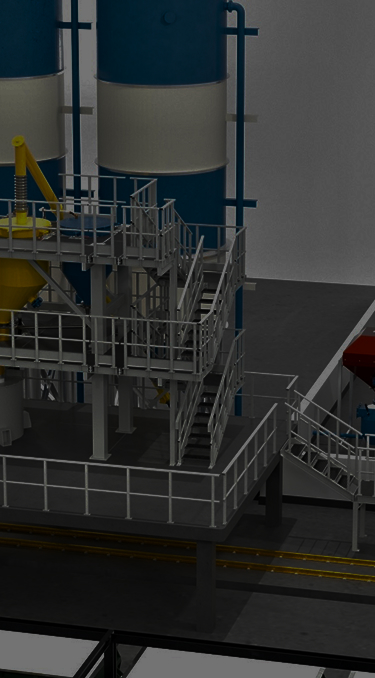

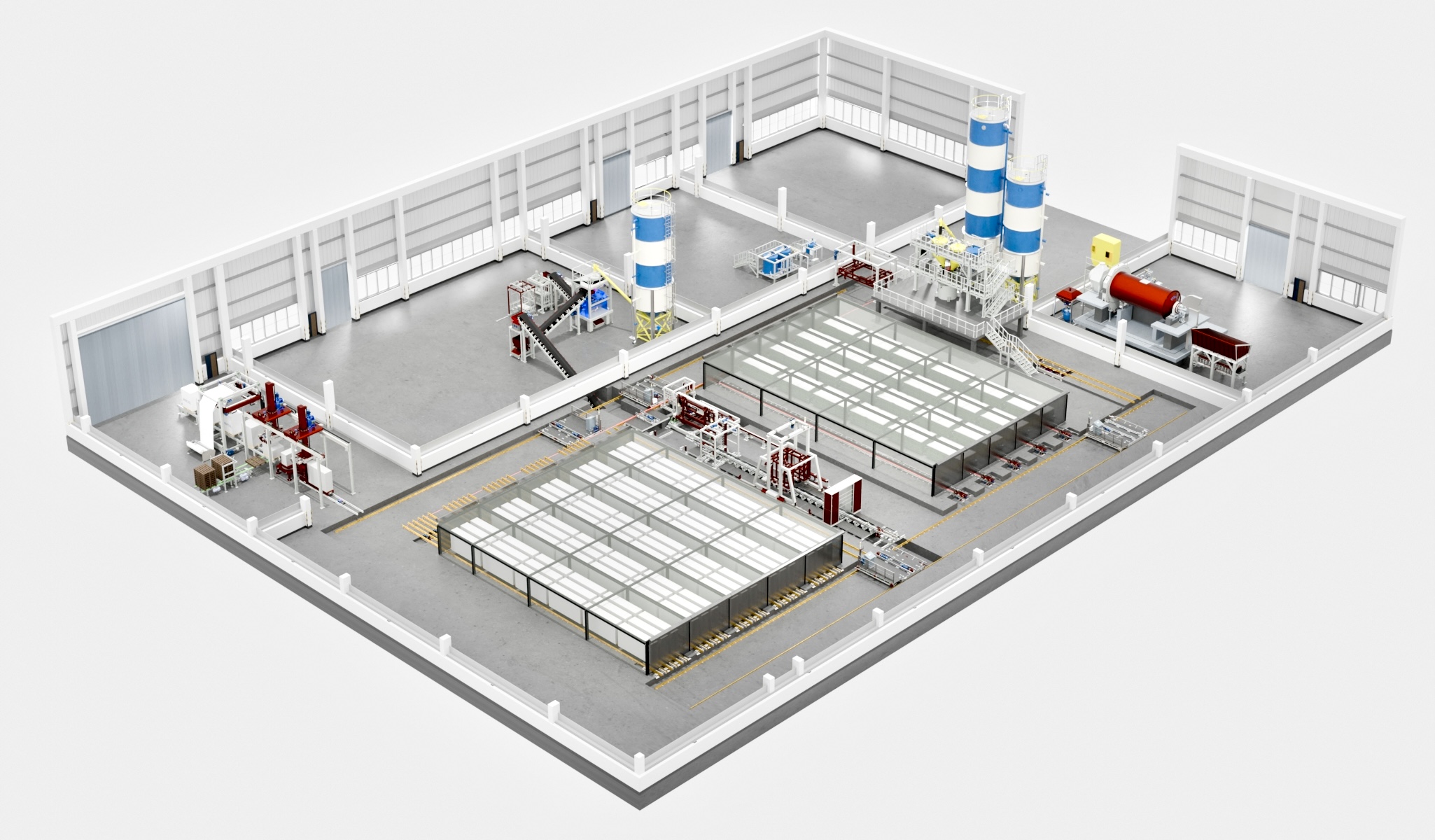

Blocora NAAC-800-A - Full Layout of the NAAC Block Production Line (800m³/day)

To help you better understand how our NAAC block production line is structured and how the individual machines work together, we’ve prepared a detailed layout with numbered components. Below, you’ll find a complete breakdown of each section — including mixing, casting, cutting, curing, and packaging — with clear explanations of their functions and roles in the overall process.

This section provides a full overview of the production flow and will help you evaluate how the system can be integrated into your plant and aligned with your business goals.

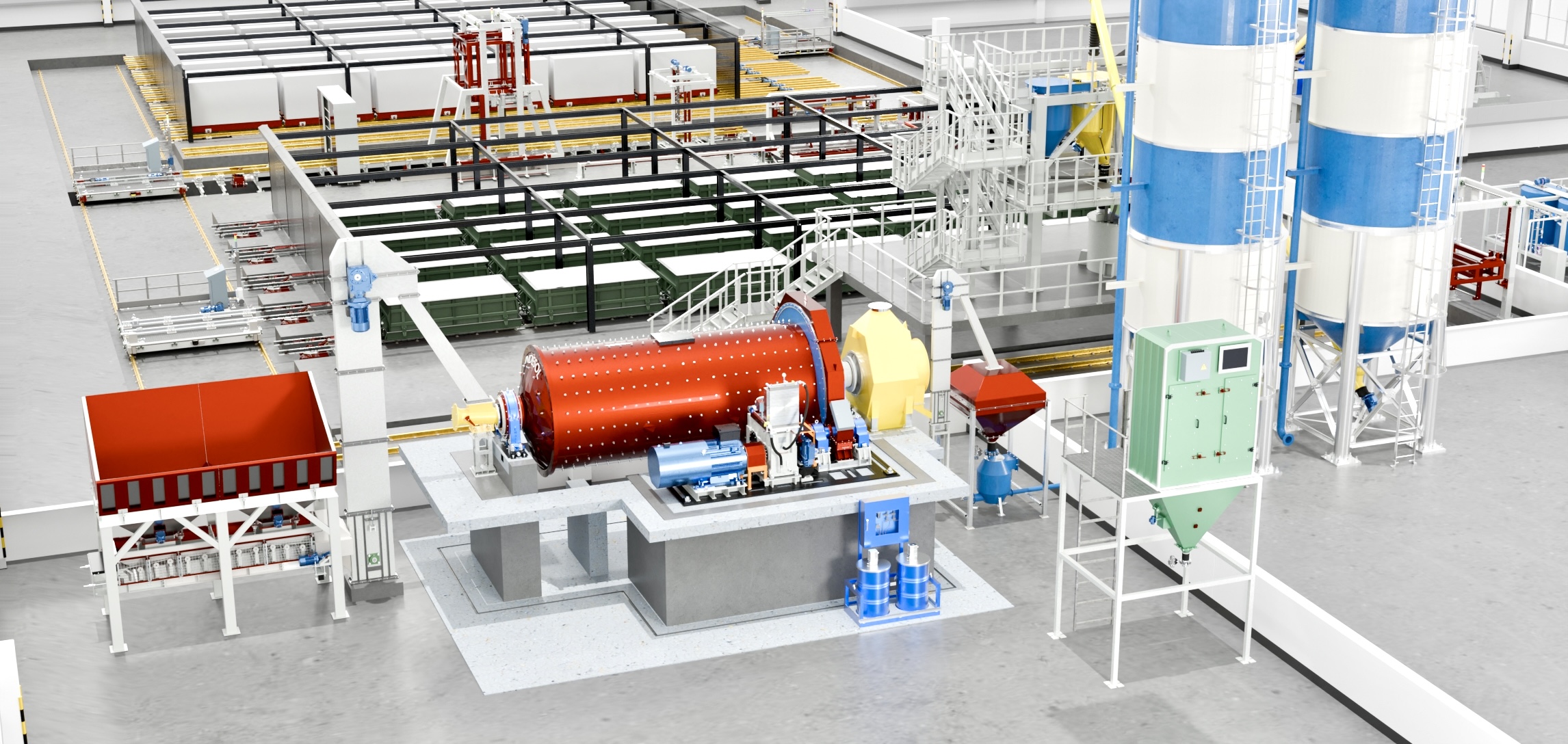

1.

Sand Milling Section (optional)

Sand is the most affordable and widely available filler for NAAC production — found in virtually every region. However, to achieve high-quality lightweight blocks (e.g., density grades D400–D600), proper dry milling is essential. Using unground sand at low densities often leads to poor strength, inconsistent structure, and higher cement consumption.

In this section, quartz sand undergoes dry grinding to reach optimal particle size distribution. The ideal moisture content for effective dry milling is 0.5–1.5 %, ensuring high efficiency, preventing clogging, and avoiding the need for additional drying equipment.

Finely milled sand ensures a uniform pore structure throughout the block mass, improves compressive strength, reduces cement usage, and stabilizes product quality.

1.1. Sand Storage Hopper

The sand storage hopper is the starting point of the milling section. It serves as a buffer for holding dry quartz sand before it enters the grinding system. Its volume is designed to ensure continuous operation of the ball mill and a stable flow of material.

Sand is loaded into the hopper using a wheel loader. The hopper is equipped with a vibrating feeder, a slide gate, and a belt conveyor to ensure accurate and controlled sand discharge into the milling area. This setup prevents clogging, supports consistent material flow, and improves the overall reliability of the system.

1.2. Sand Feeding System to the Mill

Depending on the plant configuration, sand is transferred from the storage hopper to the ball mill using one of the following systems:

  • A belt conveyor — used for inclined material feeding;
  • A bucket elevator — suitable for vertical transport, especially where space is limited.

Both systems provide a stable and controlled sand flow to the grinding zone and are selected according to layout conditions and production needs.

1.3. Dry Grinding Ball Mill

The ball mill is designed for fine dry grinding of quartz sand to the required particle size. This is a key process step, especially when producing low-density blocks (D400–D600), where material uniformity is crucial for strength and pore structure.

The system includes adjustable material feed, allowing operators to control the grinding fineness according to production needs. Optimal loading of steel balls and controlled rotation speed ensure consistent and efficient grinding.

The mill body is protected by wear-resistant steel lining or specialized abrasion-resistant materials, significantly extending equipment service life. It is equipped with a dust extraction system and automatic discharge with particle separation.

Designed for continuous 24/7 operation, the mill requires minimal maintenance. Output capacity can be tailored to fit the production line's performance requirements.

1.4. Pneumatic Transfer Pump

The pneumatic transfer pump is used to convey dry ground sand through a pipeline using compressed air. This system enables contactless material transfer, minimizes dust generation, and ensures a stable sand flow during production.

The system includes an intermediate buffer hopper, which acts as a link between the ball mill and the pump, ensuring continuous mill operation during sand transfer to the silo.

1.5. Finished Sand Storage Silo (optional)

The silo is used to store dry ground sand after grinding and pneumatic transfer. It ensures continuous and controlled sand feeding to the mixing station during concrete preparation.

The discharge system with controlled flow is equipped with a screw conveyor for precise material delivery. The silo also includes a dust filter to minimize dust emissions and improve workplace safety. Level sensors can be installed for fill monitoring, along with an emergency pressure relief valve to protect against overpressure.

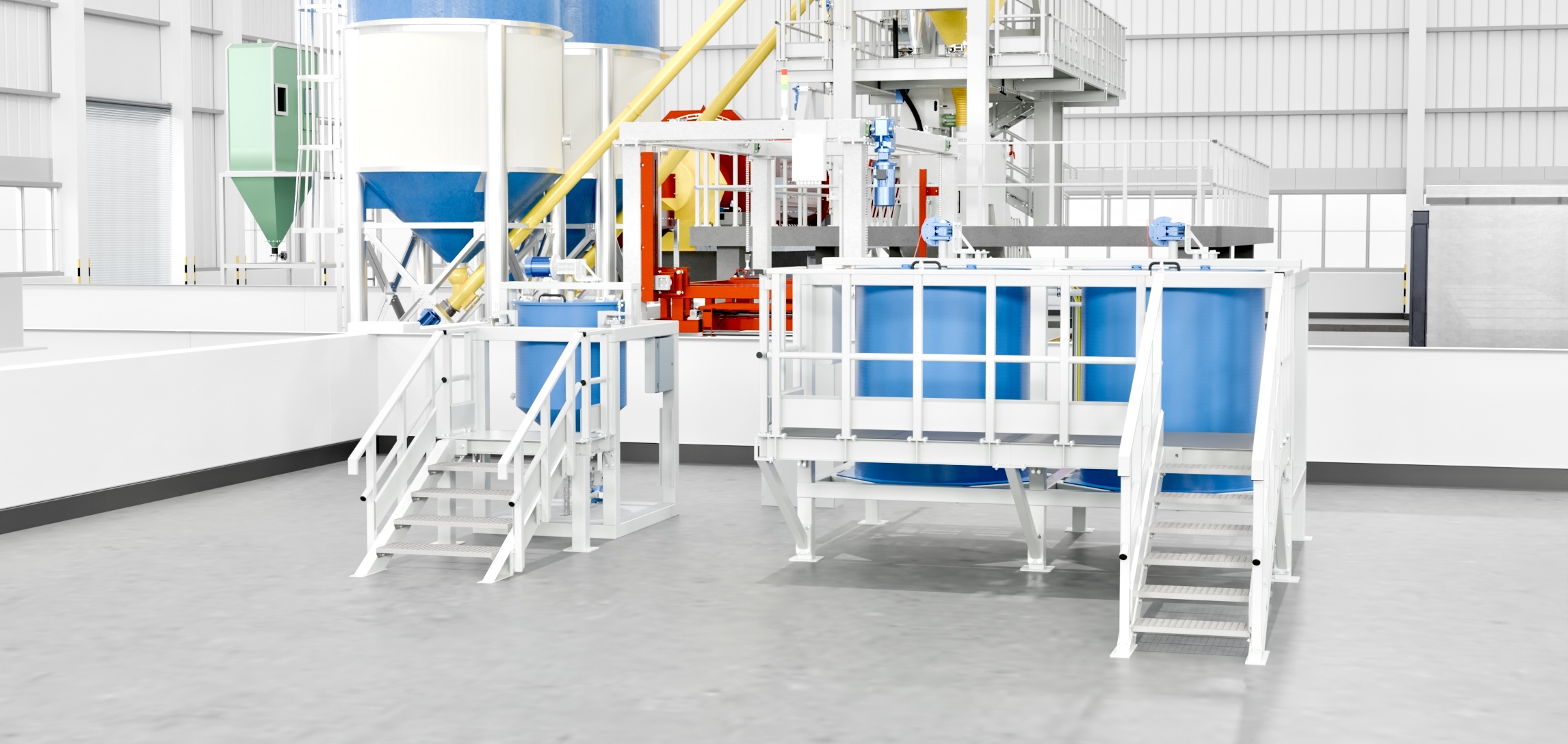

2.

Chemical Additives and Aluminum Slurry Preparation Section

2.1.  Chemical Additive Preparation Unit
2.2.  Aluminium Slurry Preparation Unit

This unit is responsible for preparing key components essential for forming the cellular structure and ensuring concrete mix stability. It includes equipment for dissolving and activating chemical additives, which enhance the technological properties of the mix, as well as an aluminum slurry preparation system required for the gas generation reaction.

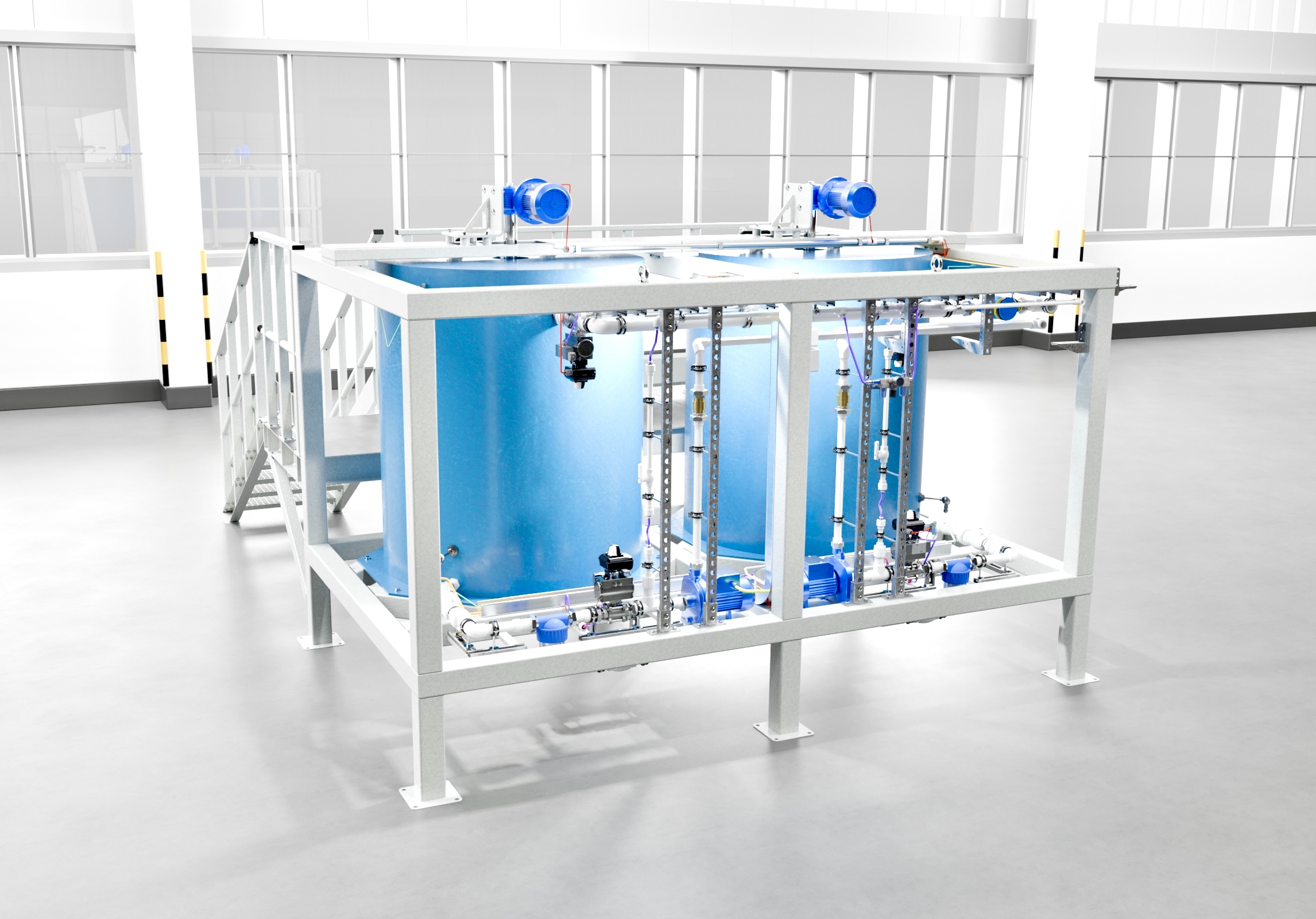

2.1.

Chemical Additive Preparation Unit

This unit consists of two mixing tanks equipped with mechanical agitators. While one tank is actively supplying the chemical solution, the second tank is being prepared with a new batch. This alternating operation ensures a continuous and uninterrupted supply of chemical additives to the next stage of production.

The preparation process begins with weighing the required chemical components according to the mix design. These components are then manually added to the tanks, where they are thoroughly blended with water. Each tank is fitted with an integrated weighing system that not only enables precise water dosing, but also allows operators to monitor the remaining volume of solution in real time.

In addition, the tanks are equipped with temperature sensors and dosing pumps that deliver the prepared solution to the NAAC slurry preparation unit. The entire process is managed by an electronic control system that ensures accurate mixing, monitoring, and transfer, contributing to the overall consistency and quality of the end product.

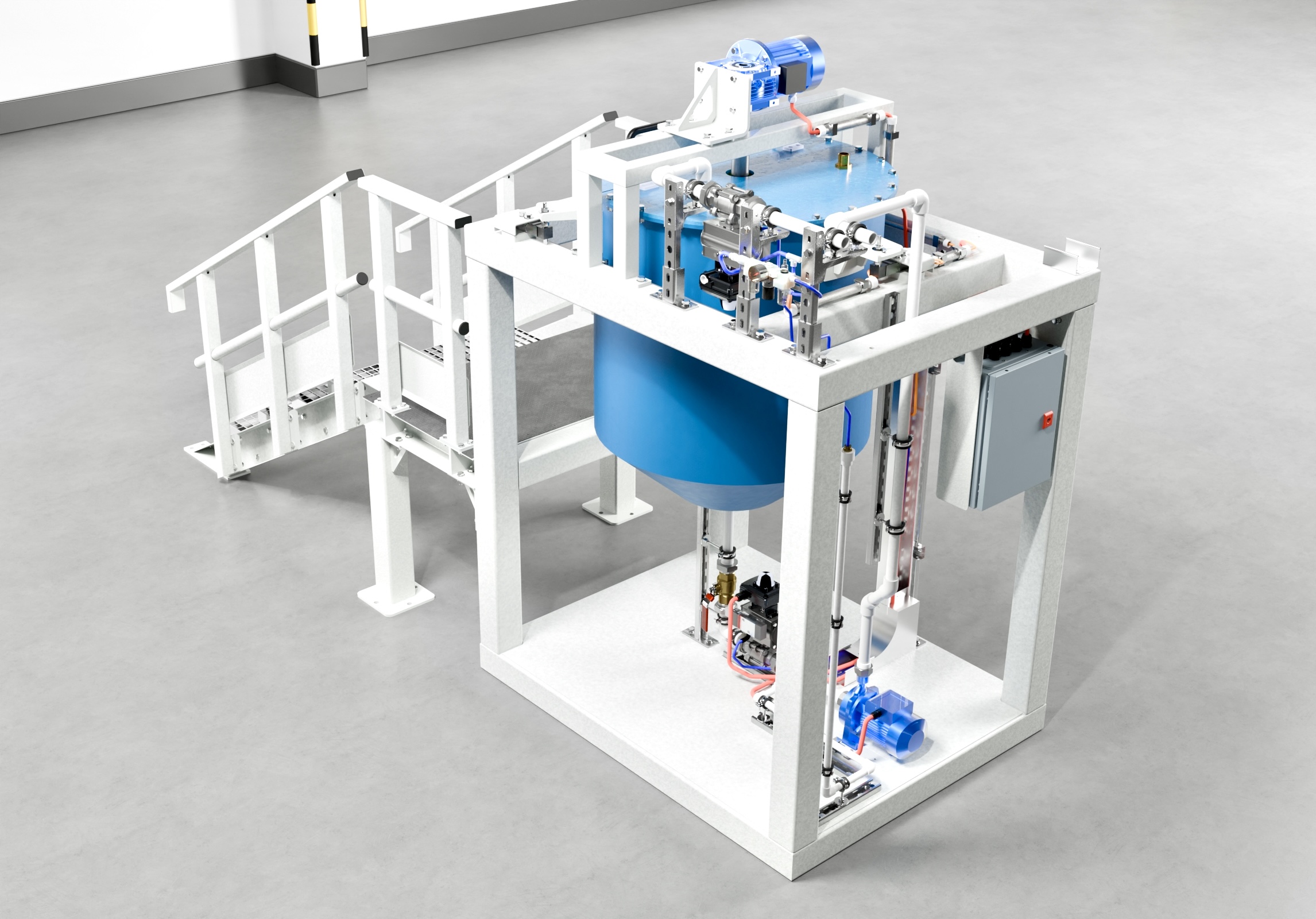

2.2.

Aluminium Slurry Preparation Unit

This unit includes a single tank equipped with a mechanical agitator and is designed for the precise preparation of aluminium slurry, which serves as the primary foaming agent in NAAC production.

The process starts with weighing the aluminium powder according to the mix design. The powder is then manually loaded into the tank, where it is thoroughly mixed with water to create a uniform slurry. The tank is equipped with a weighing system for accurate water dosing and volume tracking, as well as a temperature sensor to ensure stable reaction conditions.

The prepared slurry is pumped into an intermediate tank in the NAAC mixing unit, ensuring smooth integration into the production process. All operations are managed by an electronic control system that maintains optimal mixing parameters and slurry quality.

3.

NAAC Slurry Preparation Section

This section is the technological heart of the production line, where all key raw components—cement, fillers, chemical additives, water, and aluminium slurry—are combined to form the aerated concrete mix. The process requires precise dosing, intensive mixing, and controlled expansion to ensure a homogeneous structure and stable performance of the final product.

The section includes three main elements:

  1. the main slurry preparation unit,
  2. a vibration-impact platform, which helps to form a high-quality porous structure,
  3. and a cap handling device used for safe placement and removal of mould covers.

Together, these components ensure that the NAAC mix is prepared with high consistency and is ready for the casting process.

3.1.

NAAC Slurry Preparation Unit

The NAAC slurry preparation unit is designed to accurately combine all raw components—cement, fillers, chemical additives, water, and aluminium slurry—into a uniform aerated concrete mixture. Precise dosing and high-intensity mixing ensure consistent material quality and reliable expansion during the forming stage.

The unit includes the following main components:

  • High-speed activator mixer. Ensures powerful, uniform mixing of all ingredients and activates the mix through high-speed agitation, resulting in superior material quality.
  • Sand weighing hopper. Weighs the required amount of sand and transfers it to the mixer.
  • Cement weighing hopper. Performs the same function as the sand hopper, ensuring precise cement dosing.
  • Water dosing system. Delivers the exact volume of water as required by the mix design.
  • Chemical additives dosing system. Precisely doses liquid chemical additives into the mix.
  • Intermediate aluminium slurry tank. Equipped with a continuous circulation system that prevents slurry separation. Also fitted with a weighing system and temperature sensor to ensure accurate dosing and mix stability.
  • Aluminium slurry dosing pump. Provides precise delivery of aluminium slurry from the intermediate tank into the mixer.

The entire unit is controlled by an integrated automation system.

The system includes a centralized control cabinet with industrial-grade controllers and an operator panel (HMI). All process parameters — including mixing time, material weights, temperature, and dosing settings — can be set and adjusted through a user-friendly interface. The system enables recipe-based operation, real-time monitoring, and error diagnostics, ensuring stable and repeatable production results.

3.2.

Vibration-Impact Platform

The vibration-impact platform is designed to ensure the formation of a stable and uniform pore structure in the NAAC mix after pouring into the mould. During this stage, the filled mould is subjected to controlled vertical impulses and high-frequency vibrations. This promotes even gas distribution and prevents large air pockets or density inconsistencies within the mass.

The system is integrated into the mould filling area and operates in automatic mode, synchronized with the casting cycle. The vibration parameters can be adjusted to suit the density class and raw material characteristics, helping to optimize expansion and final block strength.

3.3.

Cover Handling Device

The cover handling device is a dual-function system designed both for removing and reinstalling the mould cover during the production cycle.

After the initial curing stage, the device automatically lifts the cover to allow the mould to move to the next section. Once the demoulded form returns to the mould filling area, the same device precisely places the cover back onto the pallet. The mould is then ready to be filled with fresh NAAC mix.

This automated process ensures proper protection of the mixture during curing and eliminates manual labour, while maintaining consistent process timing and improving overall production efficiency.

3.4.

Cement Silo (optional)

The cement silo is designed for storing cement and supplying it to the dosing unit of the aerated concrete mix preparation section. It is fully integrated into the central control system, ensuring automated operation and precise material delivery. Cement is fed using a screw conveyor.

The system includes an intermediate buffer hopper, which acts as a link between the ball mill and the pump, ensuring continuous mill operation during sand transfer to the silo.

3.5.

Foam Concrete Casting Mold

This mold is designed for pouring freshly mixed foam concrete and allowing it to harden before being moved to the cutting complex for cutting into blocks of the required size.

The mold consists of two main parts:

  • Base with wheels – a sturdy mobile platform that allows the mold to be easily transported from the pouring area to the cutting complex.
  • Removable top cover – placed on the mold during pouring to ensure precise block dimensions and removed before cutting.

This design ensures accurate block geometry, convenient handling, and a smooth, efficient production process.

4.

Pre-Cutting Curing Section

Before aerated concrete blocks can be accurately cut, the fresh mix poured into moulds must partially harden into a stable "cake" (massive block). This pre-curing stage is critical for achieving clean, dimensionally stable cuts during subsequent processing.

The pre-curing chamber provides a controlled thermal environment where the poured mass gains the necessary strength and structure. Maintaining consistent temperature and humidity conditions ensures uniform pore formation and optimal mechanical properties.

The system includes temperature retention solutions and automated transport mechanisms to organize and synchronize the movement of moulds through the curing cycle, preparing each batch for high-precision cutting.

4.1.

Curing Chamber

The curing chamber is designed to maintain optimal temperature conditions during the initial setting phase of the aerated concrete mix. Once the mould is filled, it is transported into the chamber, where the fresh mass begins to gain strength and develop its porous structure.

To retain heat and reduce energy loss, the chamber is equipped with electric thermal curtains at the entry and exit points. These curtains automatically open and close during mould movement, preserving a stable internal environment.

This step is critical to ensure consistent curing across all batches, which directly affects the accuracy of cutting and the overall quality of the finished blocks.

4.2.

Automated Loading Shuttle Cart

This automated shuttle cart is designed to transfer freshly poured moulds from the vibrating platform to the pre-curing chamber. Equipped with friction-driven rollers, it gently receives the mould from the conveyor and moves it precisely to the assigned position inside the chamber.

The cart operates under a dedicated control cabinet with a programmable logic controller (PLC), which ensures accurate positioning based on the production schedule. It is fully integrated into the plant’s central control system, enabling synchronized operations with all other components of the production line.

To ensure safety, the shuttle is equipped with obstacle detection sensors and emergency stop systems. Manual override functionality is also provided for service and emergency scenarios.

Thanks to its automated logic, this cart ensures efficient material flow and eliminates manual handling, reducing labor costs and improving workplace safety.

4.3.

Positioning Conveyors

The positioning conveyors are responsible for placing freshly filled moulds precisely within the pre-curing chamber. Based on automated control signals, each mould is directed to its designated track and held in place for the required curing time until it reaches the necessary cutting strength.

The conveyor system operates in strict synchronization with the loading and unloading shuttle carts and is fully integrated with the plant’s control system. The number of tracks (or curing lanes) within the chamber is determined by the specific configuration and production capacity of the plant.

This modular system allows for flexible layout design and optimized space utilization within the chamber, ensuring maximum efficiency and consistent curing quality for each batch.

4.4.

Automated Unloading Shuttle Cart

This cart is designed to automatically extract fully cured moulds from the pre-curing chamber according to the programmed production sequence. Once the mould has reached the required cutting strength, the cart collects it and transports it to the Cover Handling Device, where the protective cover is removed.

After the cover is removed, the shuttle cart transfers the mould to the Cutting Section for further processing. The cart is fully automated and synchronized with the overall plant control system, ensuring seamless coordination between the curing chamber and the cutting area. It also features manual override options and safety systems to prevent collisions and ensure safe operation.

5.

Cutting Section

The Cutting Section is one of the most critical stages in the production of aerated concrete blocks. It ensures that each cured cake is cut with precision into blocks of specified dimensions. The quality of cutting directly affects the geometry of the final product, which in turn impacts ease of installation, joint tightness, thermal insulation performance, and overall product quality.

This section includes a set of automated equipment that performs both horizontal and vertical cutting operations with high speed and accuracy. Thanks to our proprietary cutting complex, blocks can be manufactured in a wide range of sizes with minimal dimensional deviation — less than ±1 mm — while maintaining smooth surfaces and sharp edges. The automated system also ensures synchronization with upstream and downstream processes, reducing human error and increasing overall line productivity.

5.1.

Horizontal Side Trimming Machine

After the curing process, the aerated concrete cake, together with the wheeled pallet (part of the mold), is transferred by the unloading transfer trolley to the side trimming machine. The cover has already been removed at this stage.

The side trimming machine removes the outermost layers from both long sides of the cake. This process ensures a regular block geometry and eliminates any imperfections formed along the mold edges. The cake remains on the pallet with wheels during this operation.

Precise trimming of the side surfaces guarantees clean, even edges and optimal alignment for subsequent cutting stages. The operation is fully automated and synchronized with the movement of the wheeled pallet, ensuring seamless integration with the entire cutting process.

5.2.

Tilting Unit

After the side trimming process, the cake — still resting on the original wheeled pallet — is transferred onto the tilting unit. This unit performs the critical operation of rotating the entire cake from a horizontal to a vertical position, which is necessary for accurate vertical and horizontal cutting in subsequent stages.

During tilting, the cake is carefully inverted together with the original pallet, and then gently placed onto a new, clean pallet prepared in advance. The new pallet continues to carry the cake through the rest of the cutting section.

Meanwhile, the original pouring pallet is automatically returned to the mixing and pouring area to begin a new production cycle.

The tilting unit operates smoothly and precisely, ensuring no damage to the cake during rotation. It is fully integrated into the production line and designed for high-speed, uninterrupted operation.

5.3.

Vertical Side Trimming Machine

Once the cake has been tilted into a vertical position, it is transferred to the Vertical Side Trimming Machine. This unit performs precise trimming of the vertical side surfaces of the cake, removing outer layers and ensuring perfect geometric alignment for further processing.

This trimming step is essential to achieve accurate dimensions and clean surfaces in the final blocks, especially before vertical and horizontal cutting. The machine is fully integrated into the automated cutting section and operates without the need for manual intervention.

5.4.

Vertical Cutting Machine

After passing through the Vertical Side Trimming Machine, the trimmed cake is transferred by conveyor to the Vertical Cutting Machine. Once in position, the cake is securely clamped using a special gripping system that prevents any movement during the cutting process.

The cutting unit, equipped with a high-precision band saw, moves along a programmed path, slicing the cake into vertical blocks of predetermined size. This method ensures exceptional dimensional accuracy, clean cuts, and consistent quality across the entire batch.

Vertical cutting is a critical step in achieving smooth surfaces and maintaining the structural integrity of the aerated blocks.

5.5.

Horizontal Cutting Machine

After vertical cutting is completed, the aerated concrete cake is conveyed to the Horizontal Cutting Machine.

Unlike vertical cutting, the cake here is not clamped. Instead, it is gently pushed through the machine by a conveyor system that ensures smooth and continuous movement. As the cake moves forward, it passes through one or more high-speed band saws that perform precise horizontal cuts, dividing the cake into blocks of the required height.

This method allows for efficient and accurate cutting without interrupting the flow of the production line, while also maintaining uniform block dimensions and surface quality.

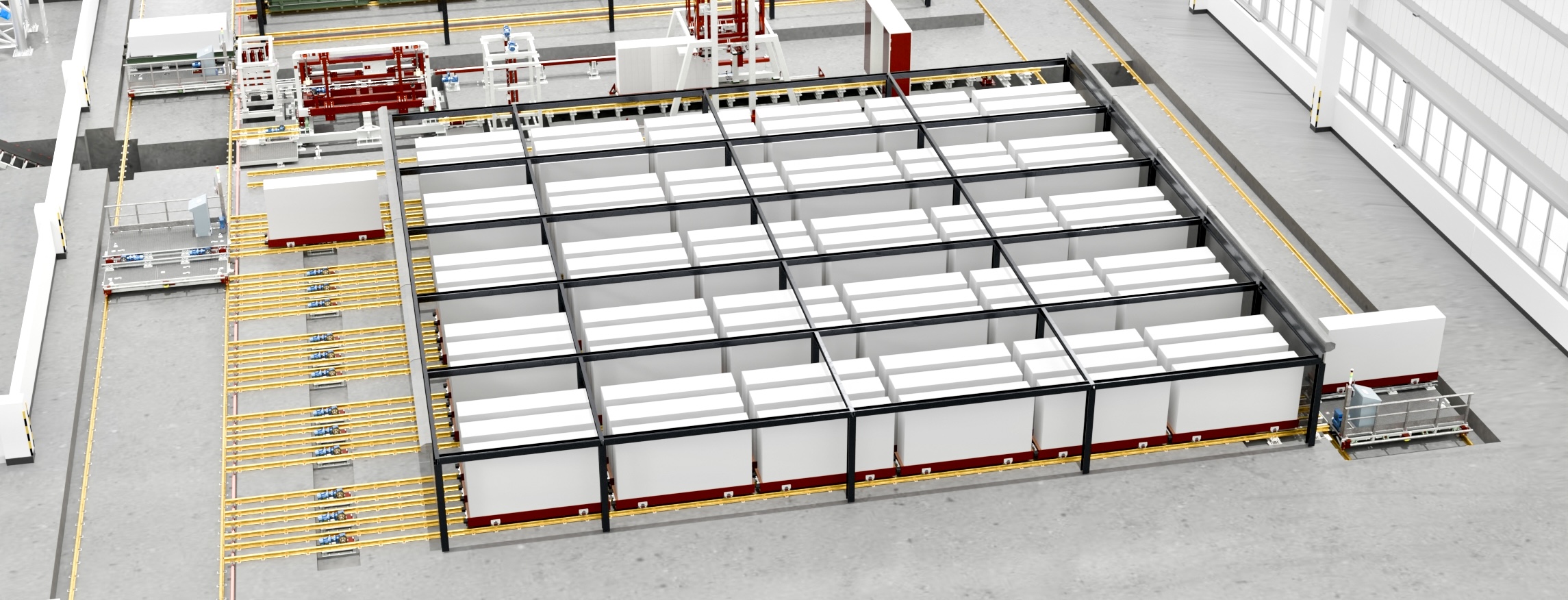

6.

Final Curing Chamber

After the cutting process, the blocks are not yet ready for packaging or use. They must undergo a final curing stage under stable temperature and humidity conditions. This chamber provides the optimal environment for the blocks to gain the required strength and achieve dimensional stability. Without this step, it is impossible to ensure consistently high product quality.

The curing time varies depending on the raw material properties, the climate zone where the plant is located, and the temperature regime inside the chamber. On average, the blocks are kept in this chamber for about 12 hours. The higher the temperature, the faster the curing process; conversely, lower temperatures slow it down.

6.1.

Final Curing Chamber

The final curing chamber is a closed space with multiple rail lines for trolleys, designed to accommodate the cut blocks for the final stage of strength development. It maintains stable temperature and humidity conditions required for the blocks to reach their final strength before packaging.

The chamber is equipped with automatic thermal curtains that prevent heat loss and help maintain a consistent internal climate. Its configuration allows flexible adjustment of the number of curing lanes depending on the plant’s production capacity. The chamber’s internal conditions can be regulated based on the region’s climate and required curing time

6.2.

Automated Loading Shuttle

The automated loading shuttle is designed to sequentially insert cut block trolleys into the final curing chamber. Unlike the pre-curing chamber, which uses positional conveyors, this chamber relies on the shuttle’s integrated pushing module to move the block-laden trolleys inside.

Mounted on wheeled pallets, the blocks are pushed one by one into the curing lanes until the current lane is fully loaded. The shuttle then moves to the next lane and continues the loading process. Once the chamber is fully loaded, the next incoming pallet automatically pushes the first pallet out, ensuring continuous and uninterrupted operation.

The shuttle is equipped with a control module integrated into the plant’s automation system, with sensors for positioning and collision protection. Manual control is also available for maintenance or emergency situations.

6.3.

Automated Unloading Shuttle

The automated unloading shuttle is used to retrieve fully cured block trolleys from the final curing chamber and transport them to the packaging area. Once the curing process is complete, the matured blocks—still on their wheeled pallets—are automatically pushed onto the shuttle, which then moves them to the next production stage.

This shuttle operates in full automatic mode, integrated with the central control system to ensure smooth and continuous material flow. It features an onboard controller, collision protection sensors, and the ability to switch to manual operation if needed. The system provides precise positioning and safe handling of cured blocks in the packaging area.

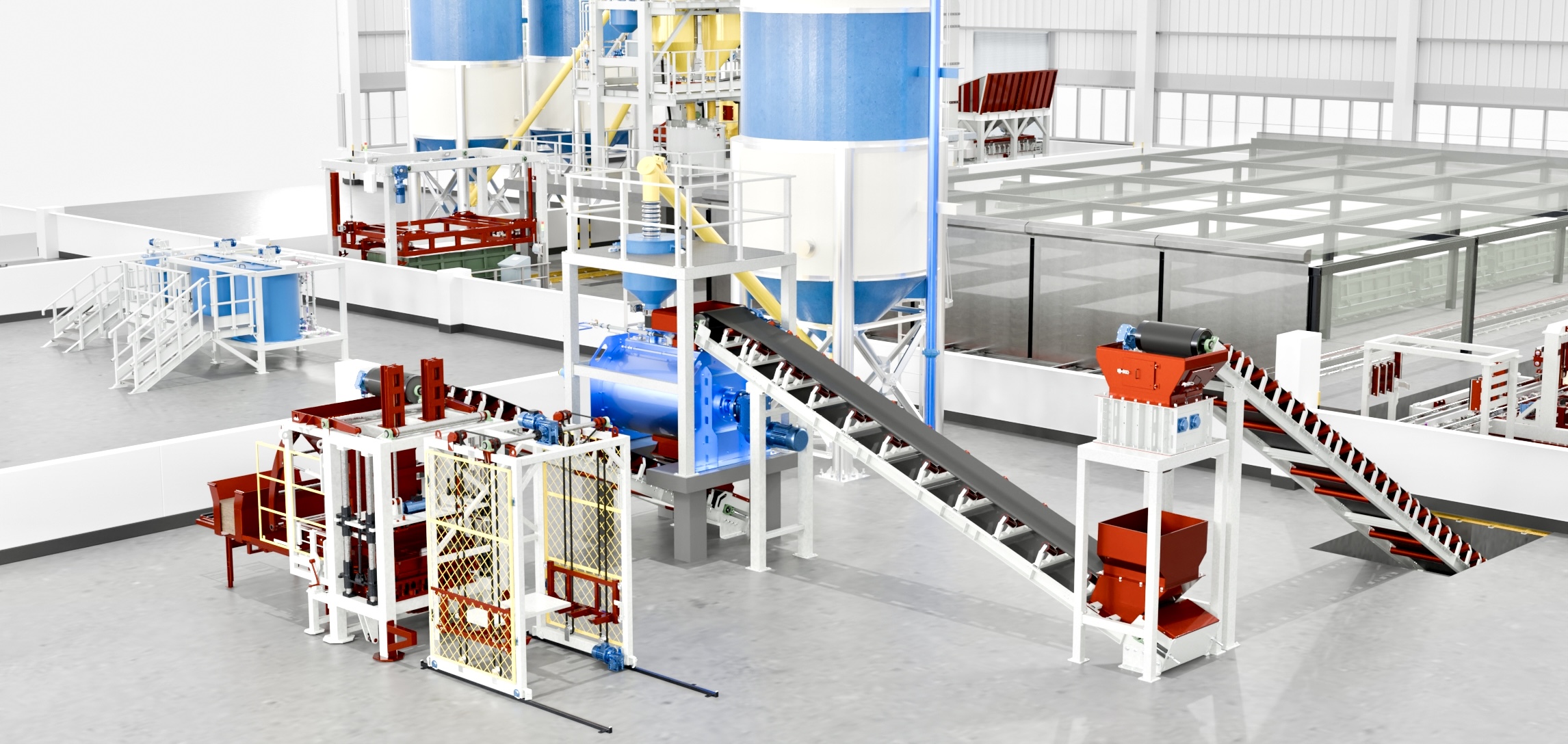

7.

Waste Collection and Recycling Section

This section is designed to collect and process waste generated during the cutting process. All residues, including trimmed edges and defective blocks, are transported from the Cutting Section via the waste removal conveyor.

Here, the waste is pre-crushed and can then be fed back into the ball mill, depending on the mix design and production cycle.

Optionally, this section can include equipment for vibropressed block production, allowing repurposing of waste into an entirely new product line. This significantly increases production efficiency and provides an additional revenue stream from material that would otherwise be discarded.

7.1.

Waste Removal Conveyor

The waste removal conveyor is designed to transport trimming and cutting waste from the entire cutting section to the recycling area. Installed along the full length of the cutting section, it ensures continuous removal of waste generated throughout the cutting process.

This conveyor helps maintain cleanliness and safety in the cutting zone and supports uninterrupted equipment operation. Depending on the plant layout, waste can be discharged into a hopper, a container, or directly into a crushing or recycling system. The operation is fully automated and synchronized with the rest of the cutting line.

7.2.

Waste shredder

This unit is designed to crush cutting waste into smaller fractions, simplifying subsequent handling, disposal, or potential recycling within the production cycle.

7.3.

Belt Conveyor with Receiving Hopper (optional)

The belt conveyor, equipped with a receiving hopper, is designed to transport shredded waste material from the shredder to the mixer. The system ensures continuous and efficient material flow for the preparation of a new mix, enhancing overall production efficiency within the waste recycling section.

7.4.

Cement Silo (optional)

The cement silo is used for storing cement and supplying it to the dosing unit of the system that prepares a semi-dry mix for subsequent vibropressing. Cement is conveyed via a screw conveyor and precisely dosed. The silo is fully integrated into the plant’s central control system, ensuring automated operation and consistent material delivery.

7.5.

Semi-Dry Mix Preparation Unit (optional)

This unit is designed for the preparation of semi-dry mixtures used in the subsequent vibropressing process. It includes a cement dosing system and a mixer installed on high-precision load cells, which ensure accurate dosing of raw materials and consistent mixture quality.The unit is fully integrated into the centralized waste recycling system, contributing to the efficient reuse of material residues generated during the production process.

7.6.

Semi-Dry Vibropressing Machine (optional)

This machine is designed for the production of high-strength blocks using semi-dry concrete mixtures. It forms blocks through a combination of vibration and compression, ensuring optimal density, dimensional accuracy, and surface quality.The unit operates in automatic or semi-automatic mode and is integrated into the waste recycling line, allowing for the reuse of crushed material. Its robust construction and efficient cycle time make it suitable for both continuous operation and integration into medium- to high-capacity production lines.

8.

Packaging Section (optional)

This section is designed for the final stage of the production process — stacking aerated concrete blocks on pallets and wrapping them for storage or transport. Proper packaging not only ensures the safety and integrity of the blocks during handling and delivery, but also improves their market presentation.

Depending on the project requirements and budget, various packaging solutions can be implemented. As an optional upgrade, INDESOL offers a modern and highly reliable Stretch Hood packaging system. This solution provides superior protection against moisture, dust, and mechanical damage, and ensures long-term storage of the product in any climate.

The Stretch Hood system is fully automated and easily integrates into the production line. It significantly reduces labor costs and increases packaging speed, making it an ideal choice for industrial-scale operations.

8.1.

Gantry-Type Automatic Stacking Robot

After the aerated concrete blocks have completed the final curing process inside the hardening chamber, the entire mold is transferred to the packaging area. The gantry-type automatic stacking robot is the first unit in this section.

This robot is fully automated and operates according to a predefined program. It picks up a full row of cured blocks from the mold and places it onto the rotating positioning table (see 8.2). The system ensures precise and damage-free handling, thanks to its carefully calibrated gripper mechanism and soft start/stop movement control.

This stacking robot can be adjusted to accommodate various block sizes and palletizing patterns, making it suitable for different customer requirements.

8.2.

Rotating Positioning Table

The rotating positioning table is installed directly after the stacking robot. Its primary function is to rotate each row of blocks by 90 degrees, ensuring the correct orientation for palletizing.

This precise rotation enables compact and stable stacking of blocks on the pallet and helps form a uniform stack geometry. The table is integrated into the automatic sequence and operates in synchronization with the stacking robot and the palletizing system.

8.3.

Pallet Magazine

The pallet magazine is an automated storage unit designed to hold a stack of empty pallets and dispense them one by one onto the pallet conveyor system.

When a new pallet is needed in the packaging line, the system automatically releases a single pallet and places it on the conveyor. This ensures uninterrupted operation of the packaging process and eliminates the need for manual pallet loading. The magazine can be refilled with a new stack of pallets without stopping the line, further enhancing efficiency.

8.4.

Automated Gantry Palletizing Robot

This automated gantry-type palletizing robot picks up the stacked row of blocks from the rotating table and places it precisely onto the pallet. Operating according to a pre-programmed sequence, it ensures accurate positioning, stable stacking, and optimal load distribution.

The system is fully automated and integrated into the packaging line, allowing for continuous operation without manual intervention. It can be adapted to different block sizes and stacking patterns, providing high flexibility and consistent performance.

8.5.

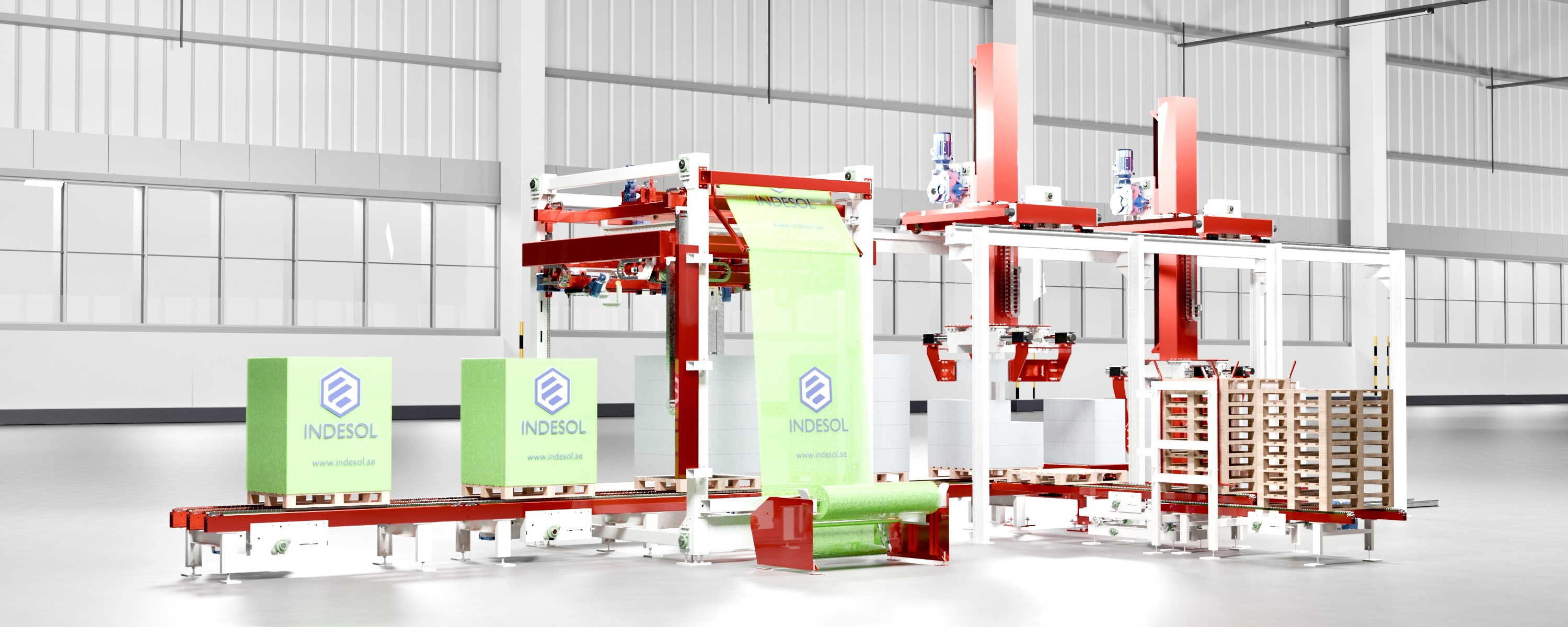

Stretch Hood Wrapping Machine

The Stretch Hood wrapping machine is the final stage of the packaging line. Once the pallet is fully stacked with aerated concrete blocks, it is transferred via a chain conveyor to the wrapping zone. Here, the machine applies a high-strength stretch hood film over the entire pallet in a single, seamless operation.

This modern wrapping method ensures:

  • Tight and secure packaging without the need for heat or shrink Tight and secure packaging without the need for heat or shrink tunnels.
  • Protection from moisture, dust, and mechanical damage during transportation and storage.
  • A clean appearance, suitable for direct delivery to construction sites or customers.

The system is fully automated, energy-efficient, and adaptable to various pallet sizes and block configurations.
